Views: 1564 Author: Site Editor Publish Time: 2026-09-18 Origin: Site
In modern warehouses, distribution centers and industrial facilities, door performance can directly influence material handling efficiency, environmental control and workplace safety. Traditional industrial doors may require longer opening and closing times, which can create unnecessary interruptions when forklifts, vehicles and personnel move frequently between different areas.

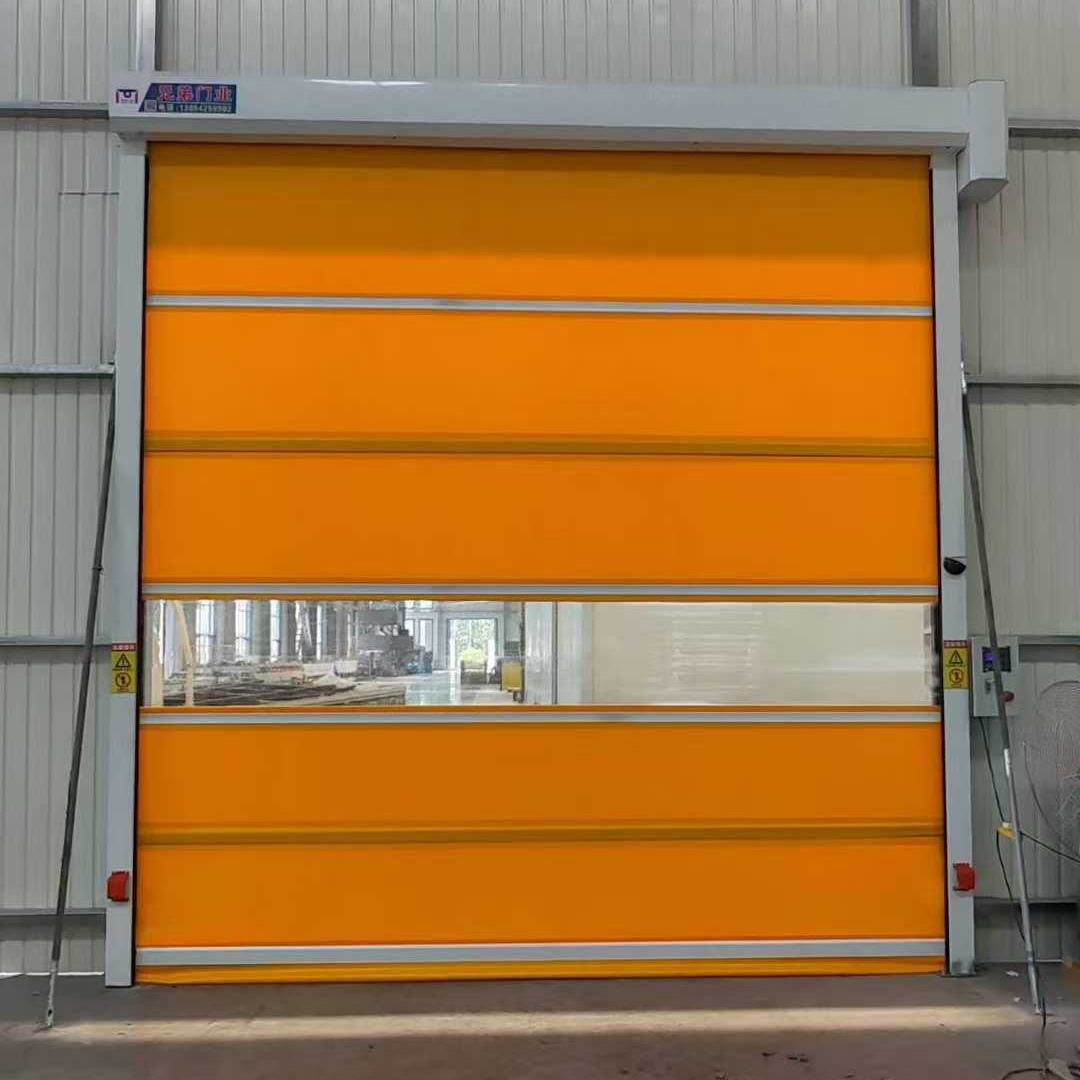

A High Speed Roll-up Door provides an alternative designed around faster traffic flow and controlled access. Master Well's high speed roll-up door uses a durable polyester PVC curtain and can be equipped with vision panels to improve visibility between connected working areas. The product is designed for applications where rapid operation, security and climate control are important considerations.
Industrial facilities often have multiple internal and external access points. Every time a door remains open, conditioned air can escape, dust can enter and the movement of people or equipment can be interrupted.
A high speed roll-up door is designed to minimize the time required for opening and closing. According to the product specifications, the Master Well model offers an adjustable opening speed of approximately 0.8–2.0 m/s, with a closing speed of approximately 0.6–1.0 m/s.
For warehouses and distribution centers with frequent forklift traffic, faster door operation can help create a smoother material-handling process. It can also support better separation between different operational zones.
Fast operation is one of the primary reasons businesses consider industrial high speed doors. The adjustable opening and closing speeds allow the door system to be configured according to the requirements of different facilities.
Master Well's high speed roll-up door can achieve an opening speed of up to approximately 2.0 m/s, depending on the configuration.
This makes the door suitable for areas where forklifts, carts, vehicles and workers pass through frequently.
The door uses a high-strength polyester textile fiber curtain, with available curtain thicknesses ranging from 0.8 mm to 1.5 mm. A transparent PVC vision panel can also be incorporated into the design.
The vision panel can help operators see approaching traffic from the opposite side before opening the door, which is particularly useful in busy warehouse and production environments.
Different facilities have different traffic patterns. The product can be operated through options including remote control, wall switch, magnetic loop, radar, pull-rope switch and signal lamp integration.
These control options allow system designers and facility managers to select an activation method that matches the specific workflow.
For example, radar or magnetic-loop activation can be useful in vehicle traffic areas, while wall switches may be suitable for pedestrian-controlled access points.
The product is specified for operating temperatures from approximately -25°C to +65°C and can be configured for wind resistance up to Class 8 according to the product information.
These characteristics make high speed roll-up doors suitable for a range of industrial environments, although the appropriate configuration should always be selected according to the actual site conditions.

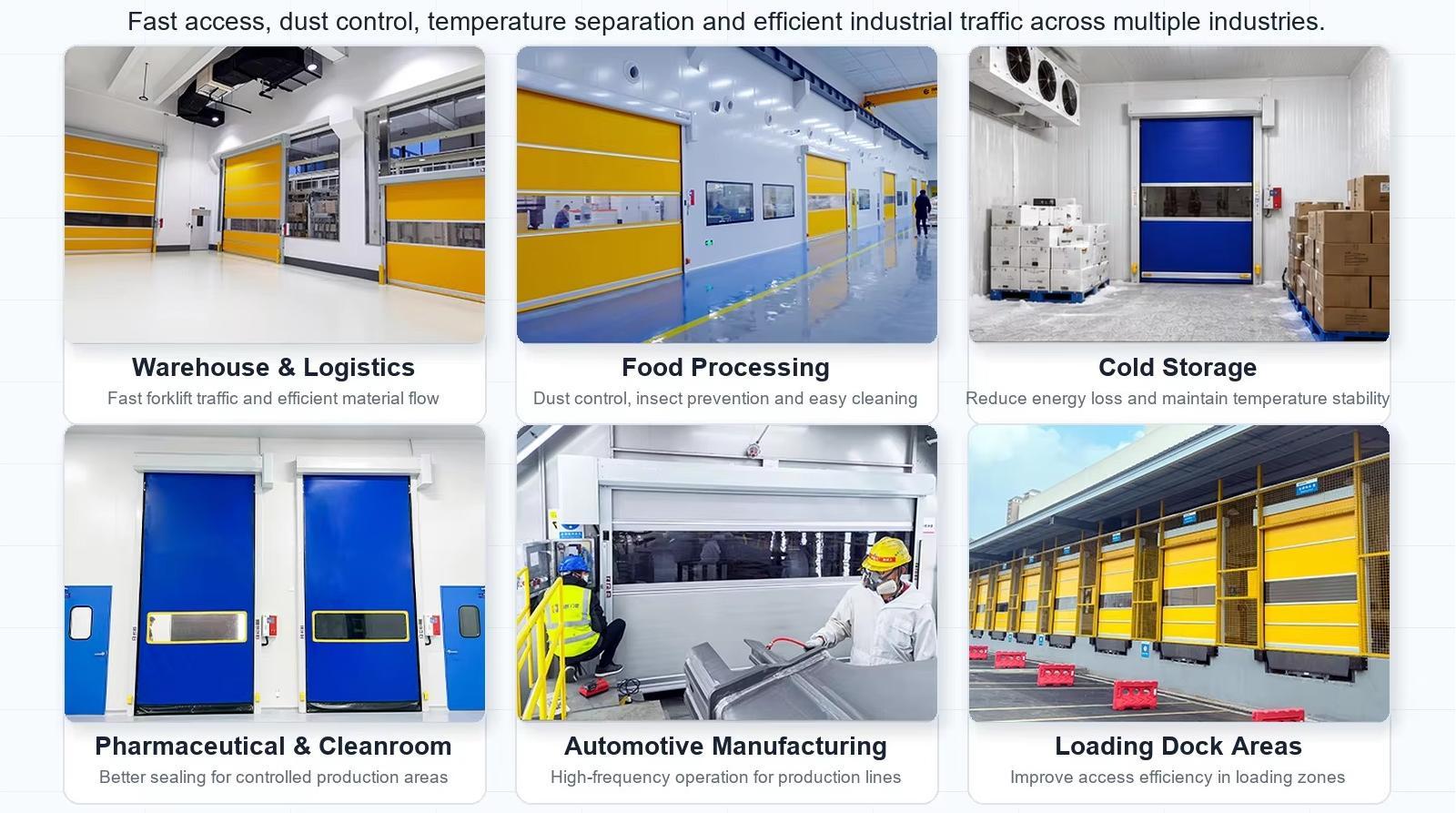

High speed roll-up doors can be used in many commercial and industrial environments.
Distribution facilities depend on efficient movement between storage, picking and shipping areas. A fast-operating door can help reduce unnecessary waiting time at high-traffic openings.
Loading areas frequently experience vehicle and forklift movement. High speed doors can help separate loading areas from other operational zones while supporting rapid access.
Food-related environments may require stronger control over temperature, dust and cross-area contamination. High speed operation can help reduce the time an opening remains exposed.
Controlled industrial environments may require improved separation between different working areas. A properly configured high speed door can contribute to controlled access and environmental management.
The product is also listed for applications including aircraft hangars and larger openings. The maximum stated door size is approximately 6500 mm wide × 6000 mm high, subject to the specific configuration and project requirements.
Industrial doors need to balance speed with safe operation. The Master Well product includes infrared photo sensors and safety airbag edge protection according to its product specifications.
The system also supports emergency manual operation through a manual crank. These features are particularly relevant for facilities where reliable access is required during abnormal operating conditions.
When selecting a high speed industrial door, buyers should evaluate the complete operating environment rather than focusing only on opening speed. Traffic frequency, opening dimensions, temperature, wind exposure, safety requirements, available power supply and control method should all be considered.
For distributors, contractors and industrial facility owners, several factors should be evaluated before placing an order.
First, determine the required door dimensions and available installation space. Second, assess the expected traffic frequency and select a suitable operating speed. Third, consider environmental conditions such as temperature, wind and humidity.
The control system is another important factor. Facilities with frequent vehicle traffic may benefit from automated activation methods, while lower-traffic locations may require simpler controls.
Finally, buyers should consider maintenance requirements, safety systems, component quality and after-sales support. A high speed door is part of the overall building access system, so compatibility with the facility's workflow is essential.
As warehouses and industrial facilities continue to prioritize operational efficiency, high speed roll-up doors are becoming an important component of modern building access systems.
By combining rapid operation, PVC curtain construction, multiple control options, safety features and environmental resistance, the High Speed Roll-up Door from Master Well is designed for applications where frequent access and controlled separation are important.
For distributors, building-material suppliers, contractors and industrial project managers, the right door configuration should be determined according to the site's dimensions, traffic conditions and environmental requirements.
A High Speed Roll-up Door is an industrial door designed to open and close faster than many conventional doors. It is commonly used in warehouses, loading areas, manufacturing facilities and other high-traffic environments.
The Master Well model has an adjustable opening speed of approximately 0.8–2.0 m/s, depending on the configuration.
Common applications include warehouses, distribution centers, loading bays, food processing facilities, chemical and pharmaceutical facilities, aircraft hangars and other industrial environments requiring rapid access or environmental control.
The stated maximum size for the Master Well High Speed Roll-up Door is approximately 6500 mm × 6000 mm. Actual dimensions should be confirmed according to the project requirements and configuration.
Yes. Available control methods include remote control, wall switch, magnetic loop, radar, pull-rope switch and signal lamp integration.
The product information specifies a working temperature range of approximately -25°C to +65°C. For cold-storage or specialized low-temperature applications, the exact configuration should be confirmed with the manufacturer.
The product is specified with infrared photo sensors and safety airbag edge protection. An emergency manual crank is also available for manual operation.
The product specification lists an operating life of up to 500,000 cycles, while actual service life depends on installation conditions, usage frequency, maintenance and operating environment.
