Summary
Wind-bars and belts are equipped
Swift close-open system can help save energy costs
High wind-proof standards
Economical and easy to repair

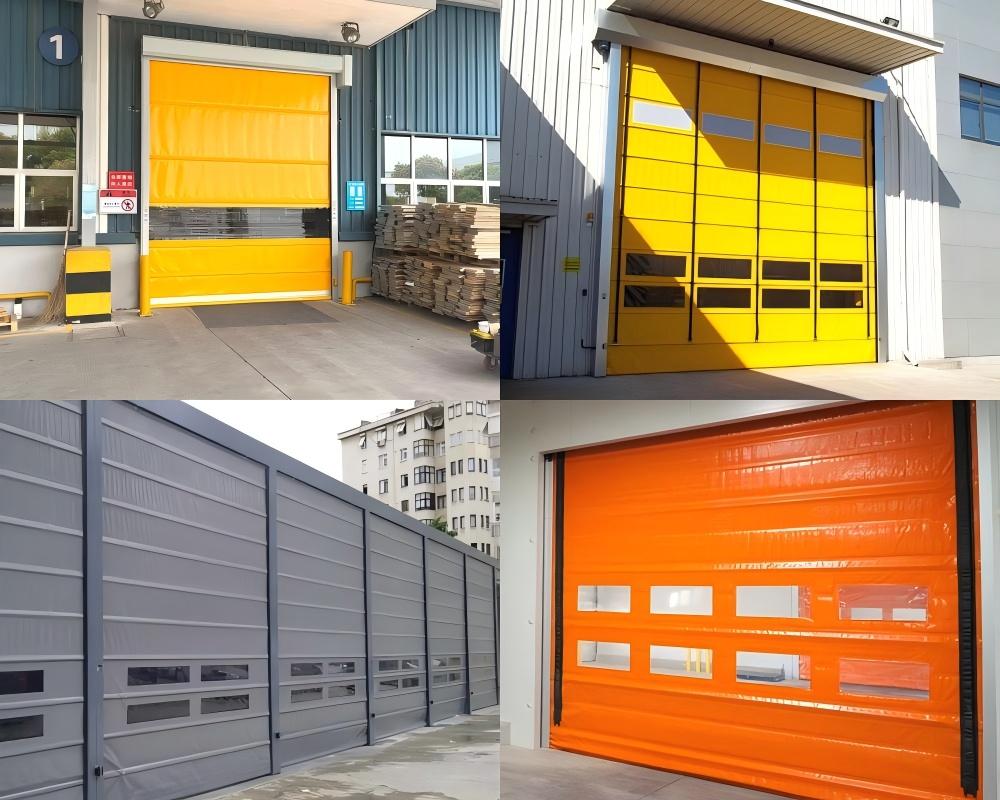

Application
Factories, workshops and warehouses which are especially in the field of food, chemical, textile,refrigeration, electronics, printing, supermarkets, assembly, precision machinery, logistics, warehousing and etc.
Features

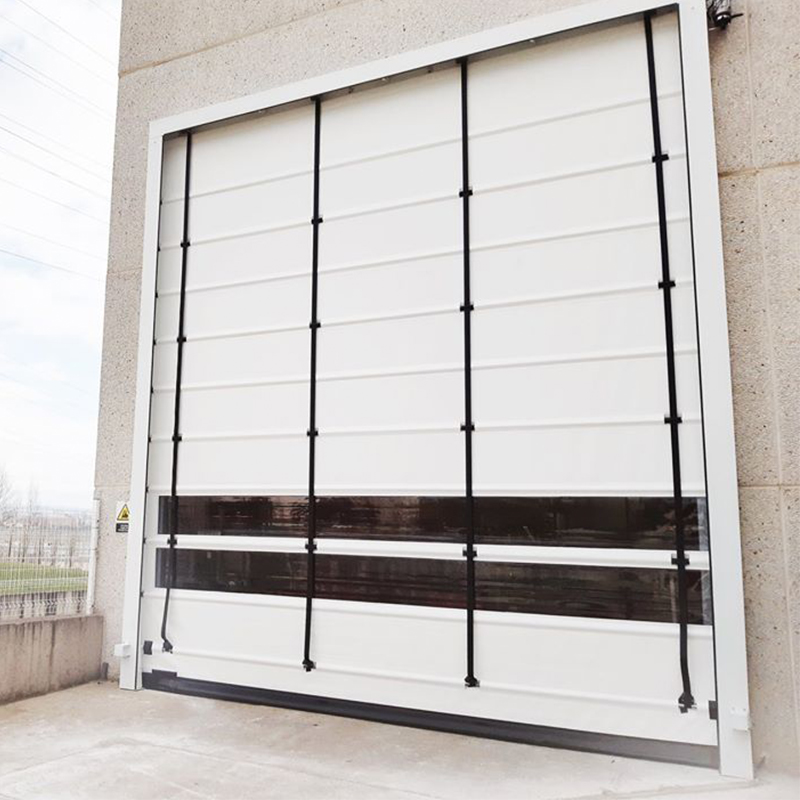

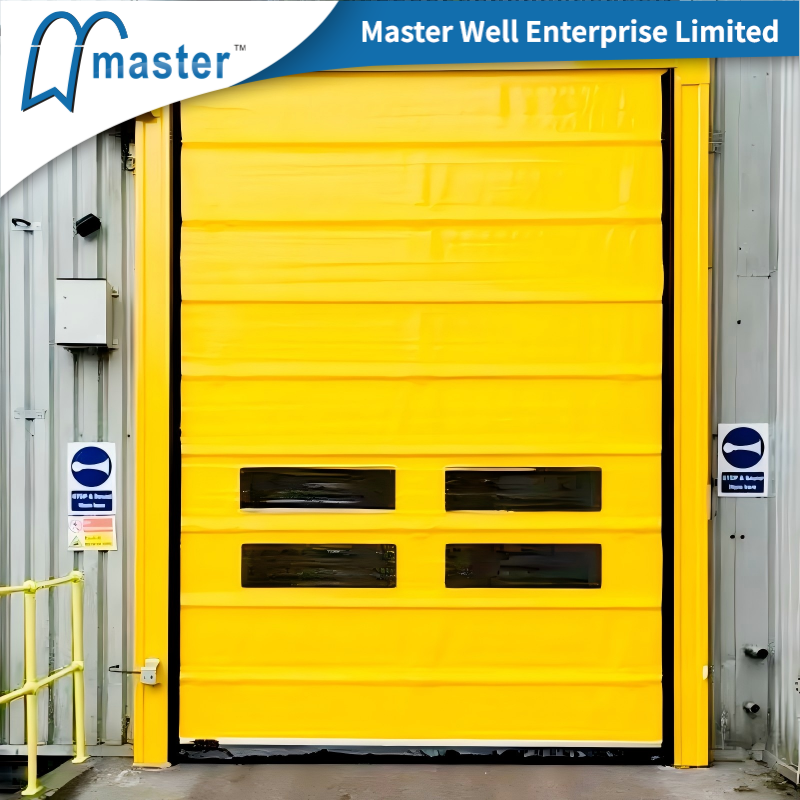

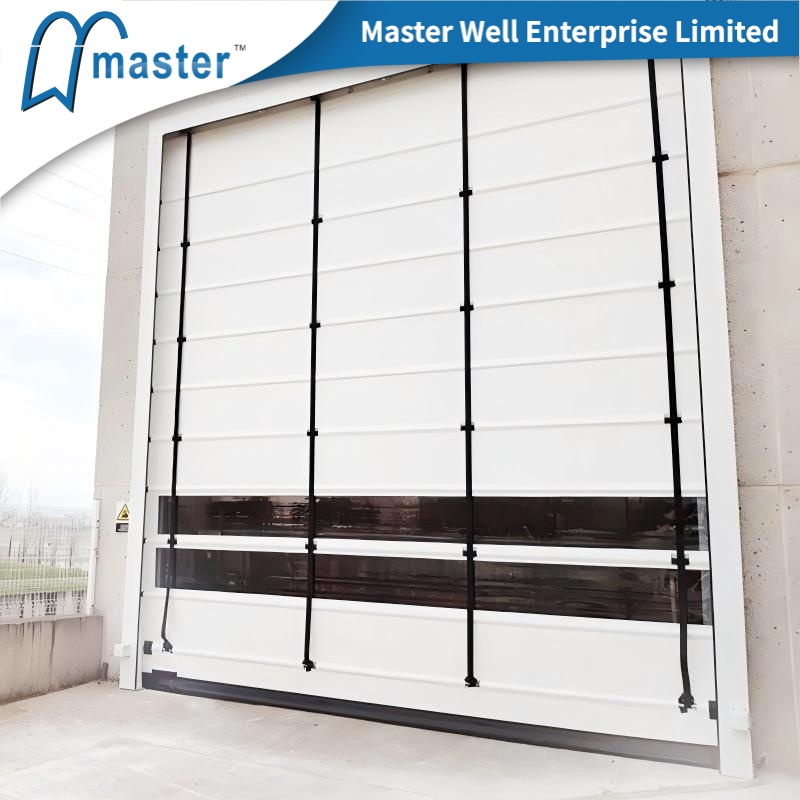

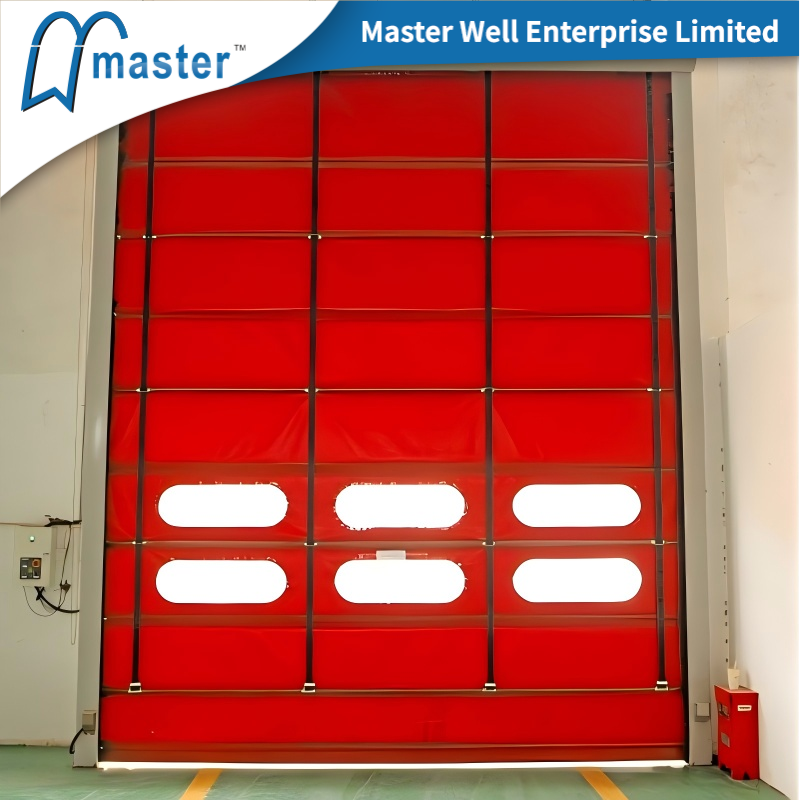

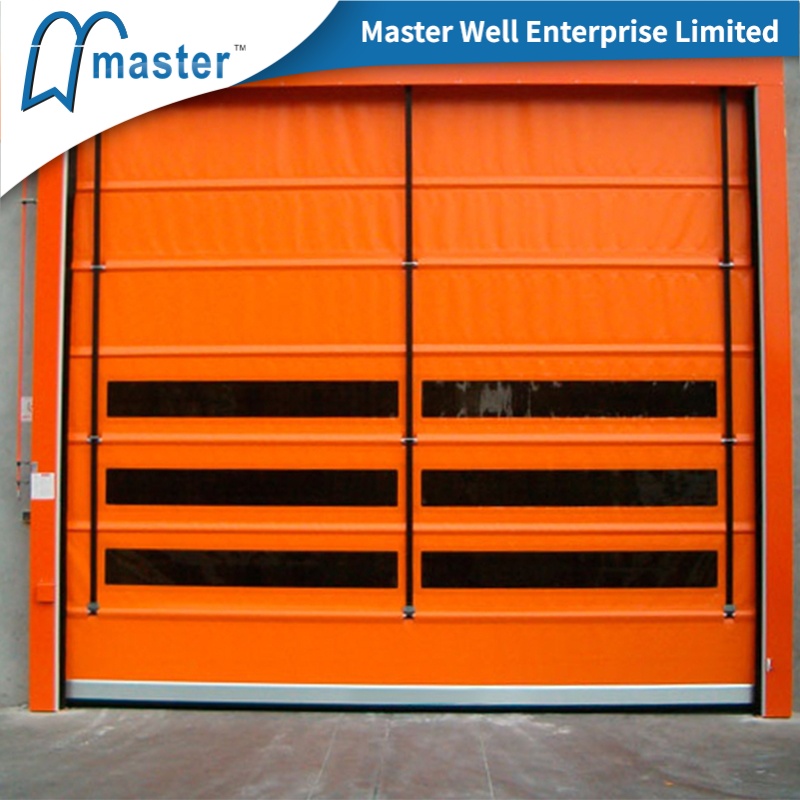

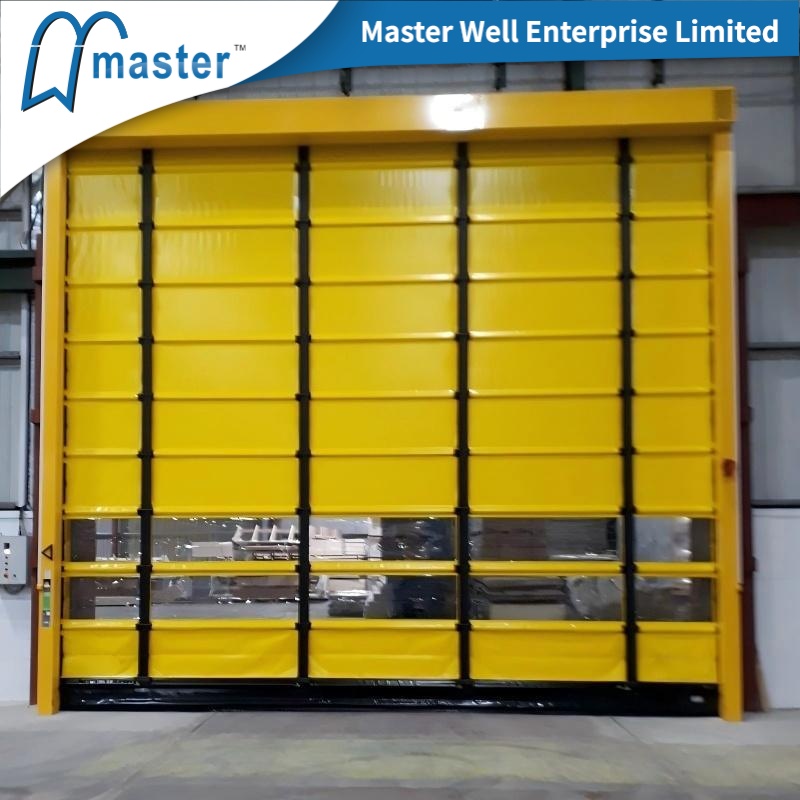

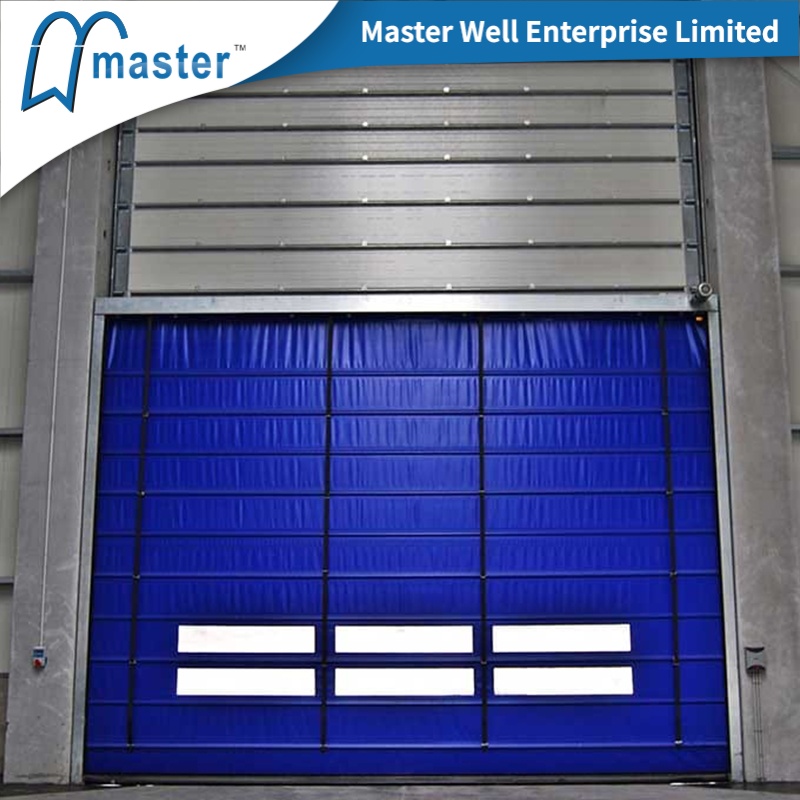

Description: High Speed PVC Stacking Doors
Maximum Size: 12000mm x 10000mm
Opening Speed: Up to 1.2m/s, variable
Temperature Resistance: -25°C to +65°C
Wind Resistance: Available up to Class 8 (Beaufort Scale)
Weight: Canvas 950g / M2
Steel Construction: Galvanized Steel with Full Cover
Vision Window: Available
Parameters
Product Name | High Speed PVC Stacking Door |
Maximum Door Size | W12000mm * H10000mm |
Operation speed | 0.6m/s-1.2m/s, adjustable |

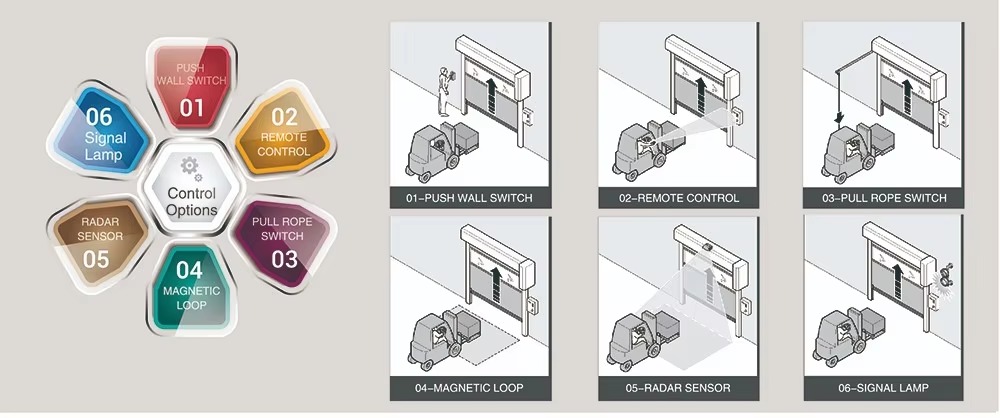

Operation way | Remote control, wall switch, Magnetic loop,Radar, Pull Rope Switch, Signal lamp |
Frame Structure | 2.0mm Galvanized steel / 304 Stainless steel |
Curtain Material | SIOEN High density polyester fiber sheet |
Motor Power | 0.75kw - 5.50kw |
Control Box | IP55 Box with PLC&INVERTER, Pre-wired and factory tested |
Safety Performance | Infrared photo sensor, Safety airbag edge protection |
Tolerance Frequency | 2 times/min, Inverter opening 2500-3000 times/day |
Wind Resistance | Class 12 (Beafourt Scale) |
Working Temperature | -25 °C to 65 °C |
Warranty | 1 year for electric parts, 5 years for mechnical parts |
