Summary
reducing energy costs
allowing faster material handling
lessen any chance of impact damage
provide swift security
Application
Warehouses with larger openings, loading bays, aircraft hangars and anywhere there is a need for climate control such as food processing, chemical and pharmaceutical industries, or a greater need for security.
Features
Maximum Size: 6500mm x 6000mm
Opening Speed: Up to 1.9m/s, variable
Temperature Resistance: -25°C to +65°C
Wind Resistance: Available up to Class 8 (Beaufort Scale)
Weight: Canvas 950g / M2
Steel Construction: Galvanized Steel with Full Cover
Vision Window: Available
Parameters
Product Name | High Speed Roll-up Door |
Maximum Door Size | W6500mm*H6000mm |
Opening speed | 0.8 - 2.0 m/s, adjustable |
Closing speed | 0.6 - 1.0 m/s, adjustable |

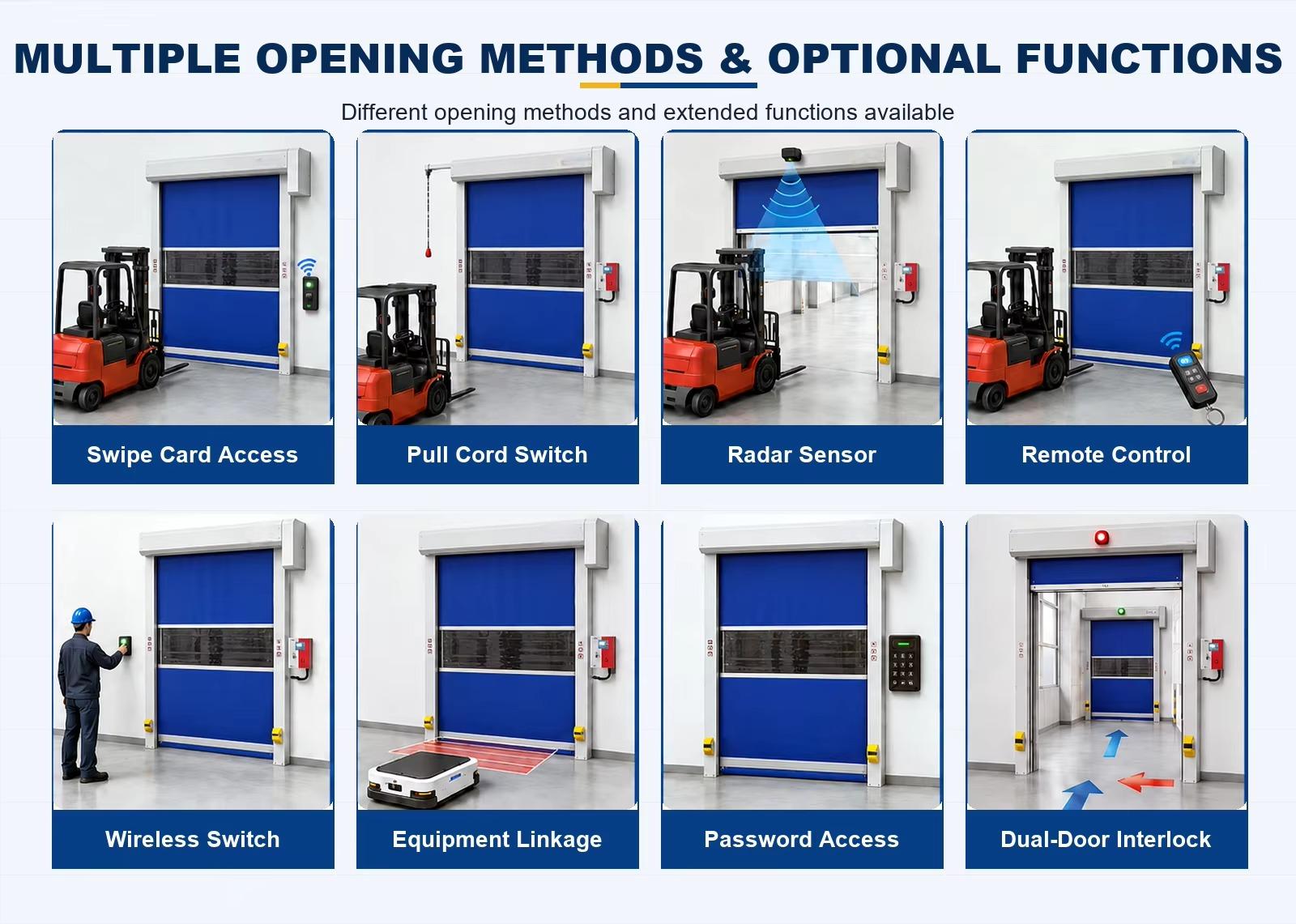

Operation way | Remote control, wall switch, Magnetic loop,Radar, Pull Rope Switch, Signal lamp |
Emergency Operation | Available with manual crank |
Curtain Thickness | 0.8 / 1.0 / 1.2 / 1.5mm |
Hardware Material | Frame and Cover Box - Galvanized steel / 304 stainless steel |
Track Guide - Galvanized Steel / 304 Stainless Steel / Aluminum extrusion | |
Wind Resistance Bar - Aluminum Extrusion | |
Curtain - SIOEN high strengh polyester textile fiber | |
Vision panel - 1.5mm thick transparent PVC | |
Motor Brand | SNMA, SEW, SIEMENS,SEJ,SERVO |
Motor Power | 0.75kw - 5.50kw |
Input Voltage | 220V 50HZ/380V 50HZ |
PLC Brand | SIEMENS / MITSUBISHI / OMRON /KEWEI |
Inverter / AC Driver | MITSUBISHI,SIEMENS,SHIHLIN |
Control Box Finish | Powder coated steel /304 stainless steel |
Safety Performance | Infrared photo sensor, Safety airbag edge protection |
Tolerance Frequency | 2 times/min, Inverter opening 2500-3000 times/day |
Safety Class | IP55 |
Wind Resistance | Class 5-8 (Beafourt Scale) |
Operating Life | 500,000 cycles |
Working Temperature | -25 °C to 65 °C |
Warranty | 1 year for electric parts, 5 years for mechnical parts |
