Views: 1652 Author: Site Editor Publish Time: 2026-10-02 Origin: Site
Modern warehouses and distribution facilities are under constant pressure to move goods quickly while maintaining safe and predictable loading operations. As truck fleets, cargo volumes, and loading frequencies increase, the loading dock becomes an important part of overall warehouse efficiency.
A high-performance hydraulic dock leveler provides a controlled connection between the warehouse floor and different truck bed heights. Instead of treating the dock leveler as a simple loading platform, facility managers can view it as an important part of the material-handling system—one that affects loading speed, equipment movement, operator convenience, and long-term maintenance.
The Master Well High-Performance Hydraulic Loading Dock Leveler is designed for factories, workshops, warehouses, supermarkets, food-related facilities, assembly operations, and logistics applications. Its hydraulic operating system, structural configuration, and customizable foundation-pit design make it suitable for demanding commercial loading environments.
Every minute spent positioning a vehicle, adjusting a dock, or dealing with an unsuitable height transition can affect warehouse productivity.
Truck beds are not always positioned at exactly the same height as a loading dock. Differences can occur because of vehicle design, suspension, cargo weight, or variations between fleets. A properly configured hydraulic dock leveler helps compensate for these differences by creating a practical transition between the dock and trailer.
For warehouses with frequent truck movements, this can make loading and unloading procedures more consistent.
Rather than relying on manual positioning, a hydraulic system allows operators to control the dock platform through an electric control system. This can simplify routine operation and help reduce unnecessary physical effort during loading activities.
A dock leveler is often exposed to repeated cycles throughout the working day. Forklifts, pallet trucks, and other material-handling equipment may cross the dock leveler hundreds of times during normal operations.
For this reason, structural durability is an important consideration when selecting loading dock equipment.

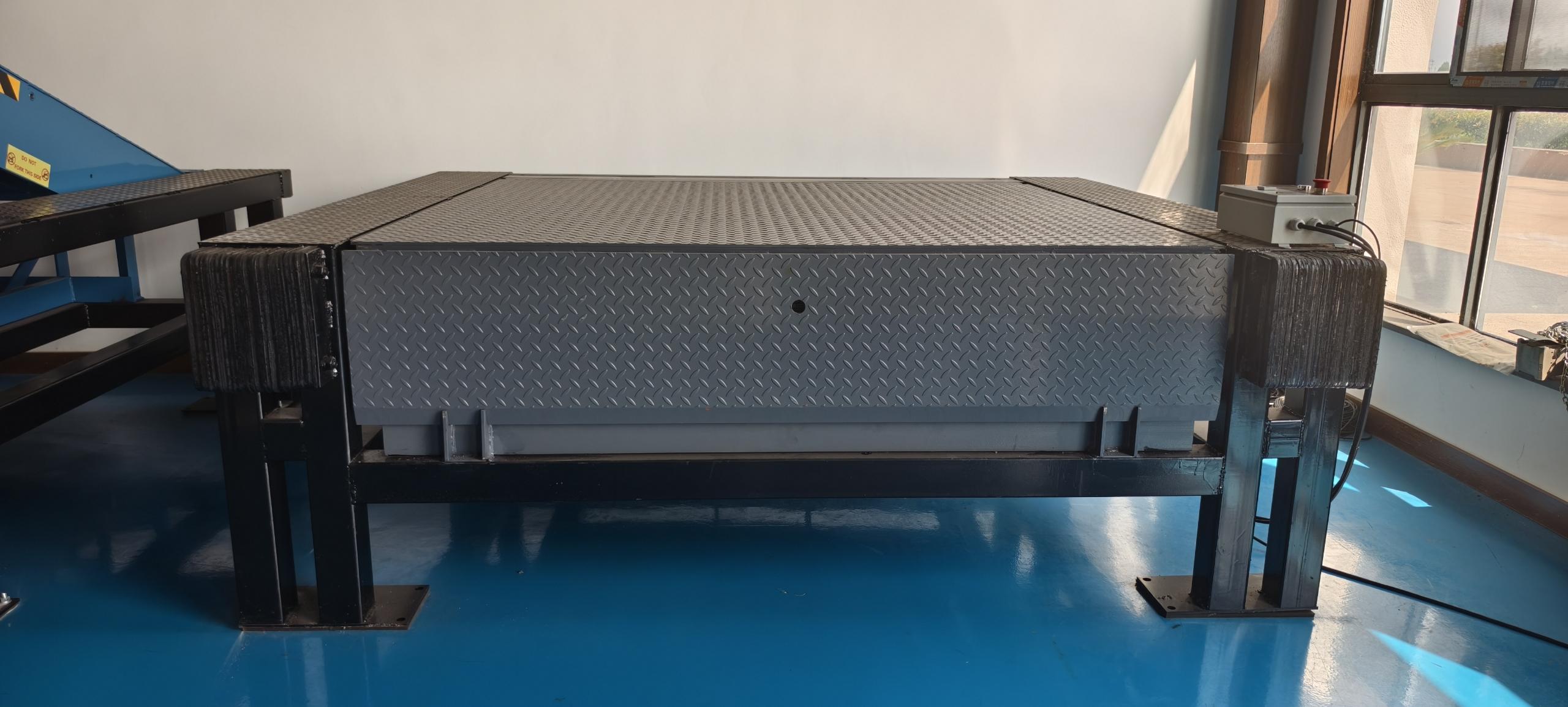

The Master Well high-performance hydraulic dock leveler uses an 8 mm anti-skid steel upper plate and a 16 mm thick, 400 mm long swinging lip. Its support structure uses an L-shaped stiffener or 14# I-beam configuration. These design elements are intended to provide a stable working platform for industrial loading activities.
The specified dynamic loading capacity ranges from 6,000 kg to 25,000 kg, while static loading capacity ranges from 10,000 kg to 31,700 kg, allowing configurations to be matched with different operational requirements.
For B2B buyers, selecting capacity according to the actual forklift, pallet, and cargo requirements is essential. Overspecifying or underspecifying equipment can both affect the overall efficiency of a loading bay.
One of the key functions of a hydraulic dock leveler is to bridge the vertical difference between the dock and the truck.
The Master Well model has a working range of -260 mm to +300 mm. Its specified rise time is up to 16 seconds, while the fall time is up to 10 seconds.
In practical warehouse operations, predictable adjustment performance can help operators establish a smoother loading sequence. This is particularly relevant for distribution centers and logistics facilities where multiple trucks may arrive throughout the day.
The objective is not simply to move the platform up and down. A well-designed loading system should help operators establish a repeatable process from vehicle positioning to cargo transfer.
Loading dock equipment operates in environments where dust, moisture, temperature changes, impacts, and repeated mechanical movement may occur.
The product uses shot blasting for rust removal and electrostatic spraying to improve corrosion resistance and coating adhesion. The manufacturer specifies an operating temperature range from -30°C to +50°C (-22°F to 122°F), which allows the equipment to be considered for a broad range of industrial environments.
The hydraulic dock leveler also incorporates an anti-collision block and a sealing element using a Japan-brand NOK A505 component. According to the product specification, the designed service life is at least 200,000 operating cycles.
For warehouse operators, these details are relevant because equipment durability is closely connected to maintenance planning and operational continuity.

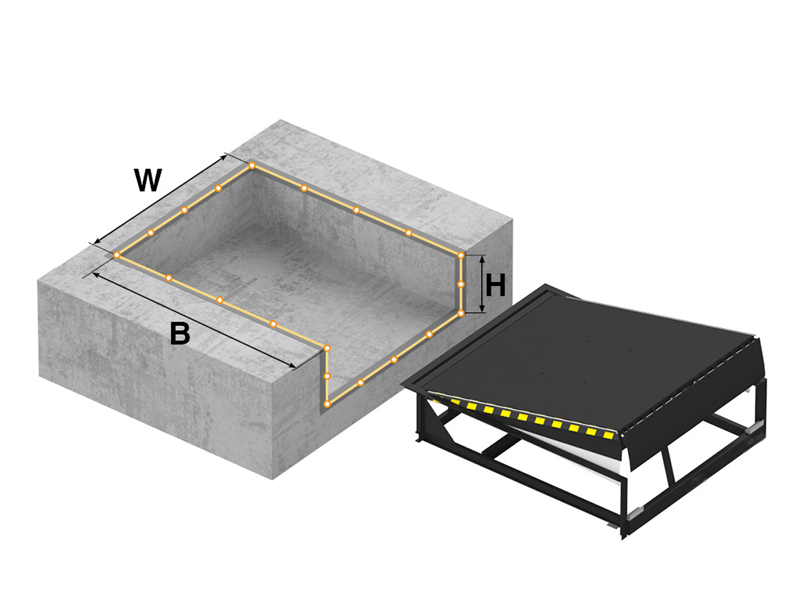

Not every loading dock has exactly the same construction dimensions.
Renovation projects may have existing pits, while new warehouses can incorporate dock equipment into the original building design. The product can be designed according to the customer's foundation-pit dimensions, providing greater flexibility during project planning.
For architects, contractors, warehouse developers, and dock-equipment distributors, this flexibility can be particularly useful when integrating loading equipment into different building layouts.
Before ordering, buyers should confirm pit dimensions, dock height, truck specifications, expected cargo weight, forklift requirements, electrical conditions, and available installation space.
Maintenance is an important part of the total cost of loading dock equipment.
The manufacturer describes this hydraulic dock leveler as having a low maintenance rate and easy repair characteristics. It also provides a five-year warranty according to the product information.
For commercial facilities, the objective of maintenance is not only to repair damaged components. Preventive inspection can help identify abnormal hydraulic performance, worn structural components, damaged bumpers, or other issues before they interrupt loading operations.
A practical maintenance program should therefore include regular visual inspections, hydraulic-system checks, structural inspections, cleaning, and professional servicing when required.

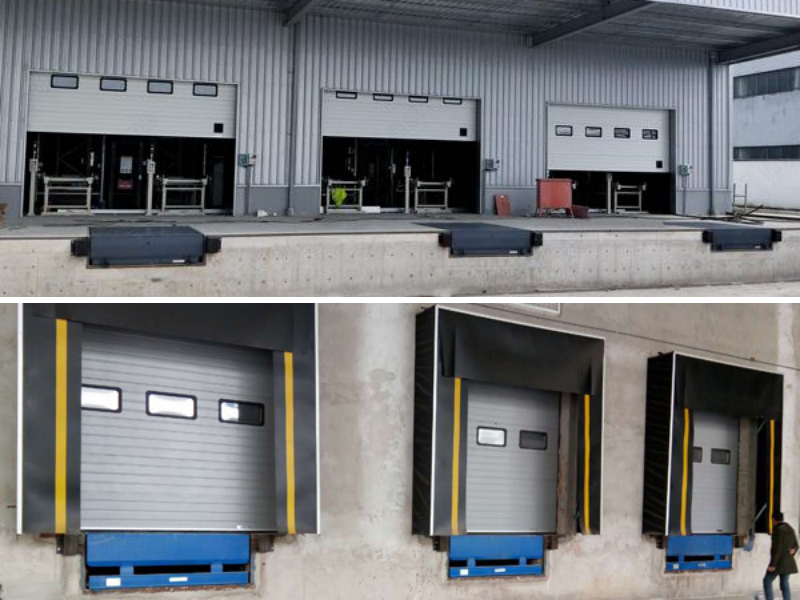

The application range of hydraulic dock equipment extends beyond traditional warehouses.
According to the product information, this high-performance hydraulic dock leveler is intended for factories, workshops, food-related facilities, supermarkets, assembly operations, logistics centers, and warehousing environments.
Different industries may have different requirements. Food and temperature-sensitive operations may prioritize environmental control and cleanliness, while distribution centers may place greater emphasis on loading frequency and throughput.
This makes the selection process more than simply choosing a product based on lifting capacity. The complete loading environment should be evaluated before specifying the equipment.
When purchasing a hydraulic loading dock leveler, buyers should consider several technical and operational factors:
Loading capacity: Match dynamic and static capacity with the actual cargo and material-handling equipment.
Working range: Confirm the difference between the facility dock height and the expected truck-bed heights.
Pit dimensions: Verify whether the equipment can be integrated into the existing or planned foundation.
Operating frequency: Consider how many loading cycles the equipment will perform each day.
Environmental conditions: Evaluate temperature, moisture, dust, corrosion, and other site conditions.
Maintenance requirements: Review accessibility of components and establish a preventive maintenance schedule.
Electrical requirements: Confirm whether the facility can support the specified 220V or 380V power configuration.
These factors can help distributors, contractors, warehouse owners, and logistics companies select loading dock equipment based on actual project requirements rather than relying solely on product appearance or initial purchase price.
A loading dock leveler is one of the most frequently used interfaces between transportation and warehouse operations. When dock equipment is properly selected and integrated, it can contribute to a more organized material-handling process.
The Master Well High-Performance Hydraulic Loading Dock Leveler combines hydraulic operation, a reinforced steel platform, adjustable working range, high load capacity, and foundation-pit customization for industrial applications. Its specifications are designed for demanding loading environments where repeatable operation and structural performance are important.
For companies planning a new loading bay, upgrading an existing warehouse, or sourcing dock equipment for distribution, manufacturing, and logistics projects, evaluating the complete operating environment is the first step toward choosing an appropriate hydraulic dock leveler.

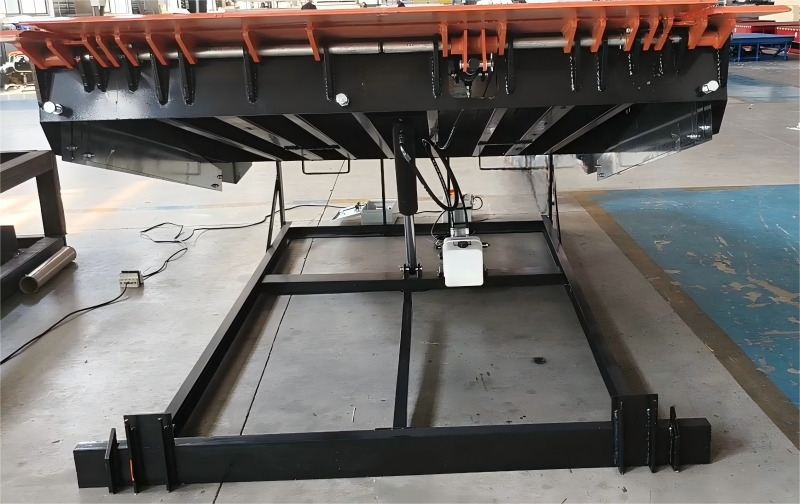

A high-performance hydraulic dock leveler is loading dock equipment that uses a hydraulic power unit to raise and lower the platform and position the lip for connecting the warehouse dock with a truck bed.
The specified working range is from -260 mm to +300 mm, allowing the platform to compensate for differences between the dock height and truck bed height.
The product has a specified dynamic loading capacity of 6,000–25,000 kg and a static loading capacity of 10,000–31,700 kg. The appropriate configuration should be selected according to the actual application.
The product specification indicates a rise time of up to 16 seconds and a fall time of up to 10 seconds. Actual operating performance can depend on installation and site conditions.
Yes. The product can be designed according to the customer's foundation-pit dimensions. Other configurations, including color, can also be customized according to the product information.
They can be used in warehouses, factories, workshops, logistics facilities, supermarkets, assembly facilities, and other commercial loading environments.
For an accurate quotation, buyers should provide the dock dimensions, pit dimensions, required loading capacity, truck-bed height range, operating frequency, power supply, and intended application.
