Views: 2554 Author: Site Editor Publish Time: 2026-09-25 Origin: Site
Loading bays are among the busiest and most exposed areas in modern warehouses, distribution centers and industrial facilities. Every truck movement creates an opening between the vehicle and the building, allowing outdoor air, dust, moisture and insects to enter the facility. At the same time, conditioned indoor air can escape, making temperature control more difficult.
A sponge dock seal provides a practical solution by creating a protective barrier between the loading dock and the trailer. Designed for warehouses and loading bays with relatively standardized vehicle dimensions, sponge dock seals can improve environmental protection, temperature retention, and working conditions during loading and unloading operations.

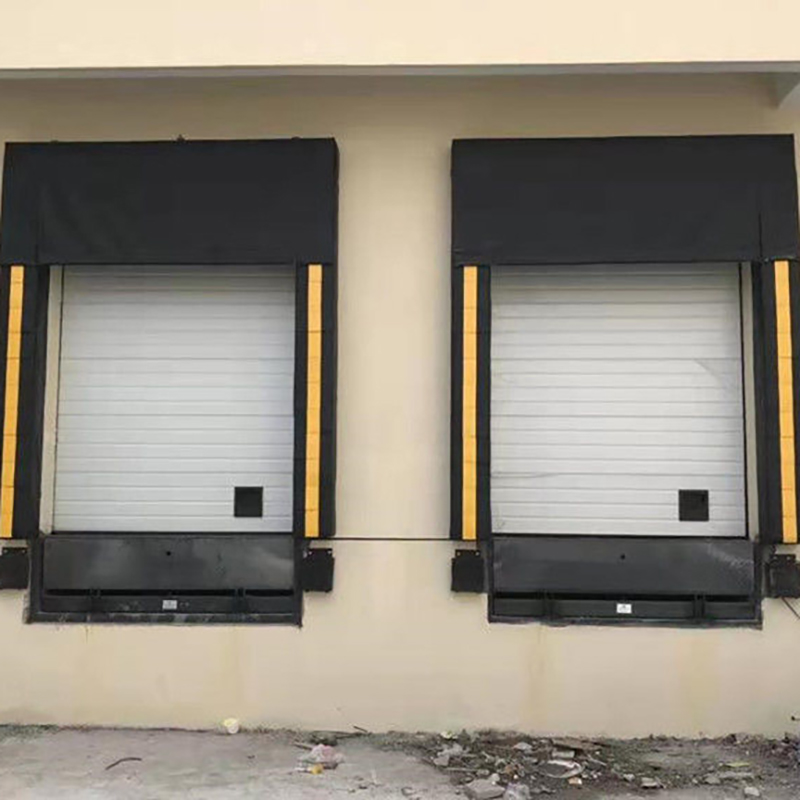

A sponge dock seal is a loading dock sealing system installed around the sides and upper section of a warehouse loading door. When a truck reverses into the loading position, the resilient sponge or foam pads compress against the rear of the trailer.
This compression helps reduce the open space between the truck and warehouse, creating a more controlled loading environment.

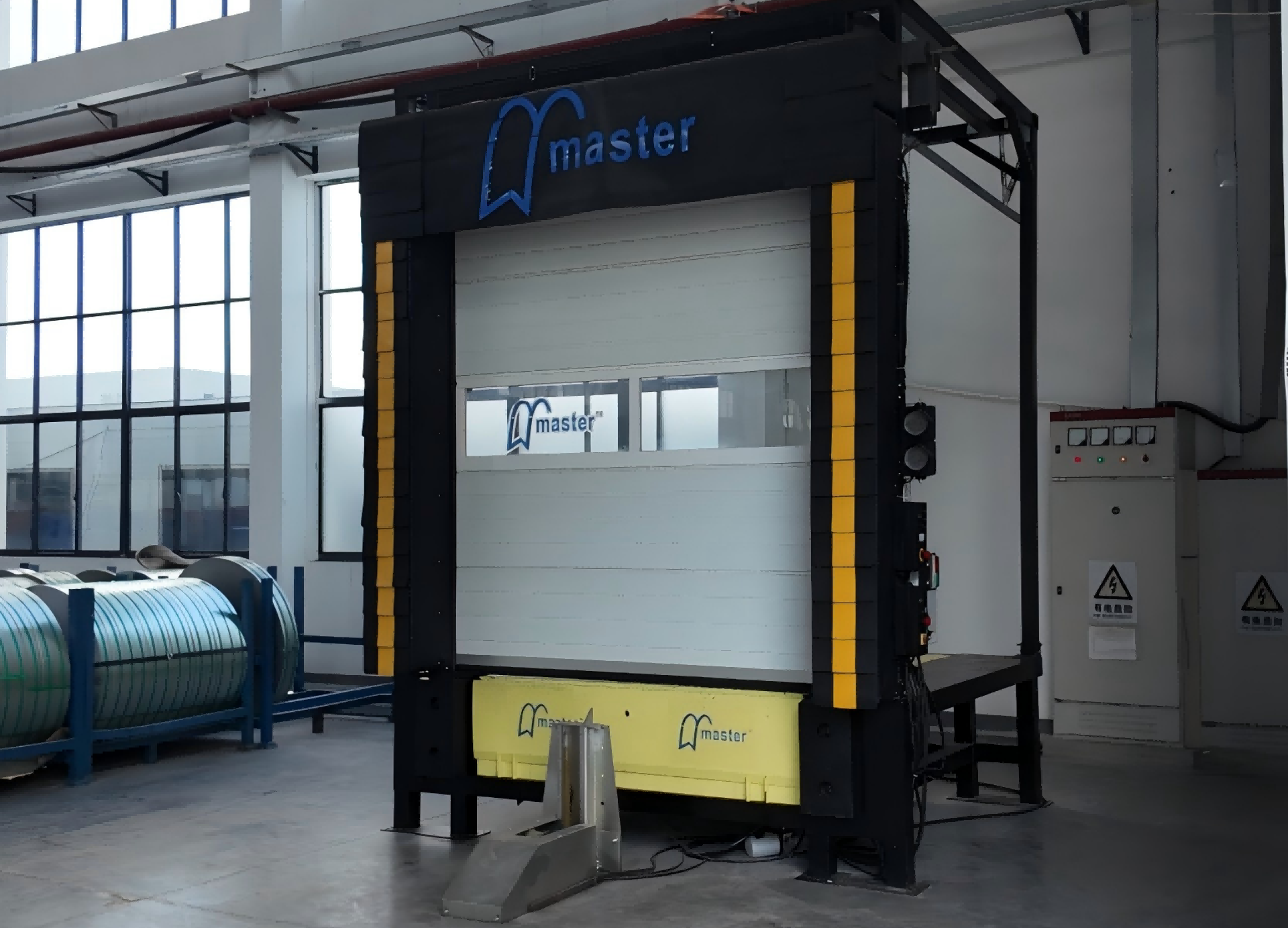

Master Well's sponge dock seal uses PVC cloth and sponge construction and is designed for sealing, moisture resistance, and impact protection. The product can also be customized in dimensions and color to accommodate different project requirements.
Unlike an open loading dock, a properly installed dock seal helps separate the interior working environment from outdoor conditions during loading and unloading.
The loading dock is often a major source of uncontrolled air exchange. Industry guidance identifies dock seals and shelters as solutions for maintaining indoor climate conditions, protecting products, and improving loading dock working environments.
Rain, wind, dust, and outdoor debris can enter a loading bay when a trailer is positioned at the dock. A sponge dock seal creates a physical barrier around the trailer, helping limit exposure to these external elements.
This can be particularly useful for warehouses handling packaged products, food, beverages, and other goods where cleanliness and environmental control are important.
For temperature-sensitive facilities, uncontrolled air exchange can increase the workload on heating and cooling systems.
By reducing the open gap around a docked trailer, a loading dock seal can help retain conditioned air inside the building. This is particularly relevant to refrigerated warehouses, cold-chain logistics facilities, and other temperature-controlled operations.
Master Well specifies a working temperature range of approximately -35°C to +70°C, making the product suitable for a broad range of operating environments.
Loading docks are exposed to outdoor contaminants throughout the day. Dust, insects and windblown debris can enter through an unprotected dock opening.
A sponge dock seal helps reduce these entry points while a trailer is docked. This makes dock seals particularly relevant to food distribution, pharmaceutical logistics, electronics manufacturing and other facilities where cleanliness is an operational priority.
Employees working around loading docks may be exposed to rain, wind, extreme temperatures and outdoor pollutants.
By creating a more enclosed loading area, dock seals can help create a more comfortable working environment. They can also reduce the amount of precipitation entering the dock area, helping maintain a cleaner and more controlled workspace.

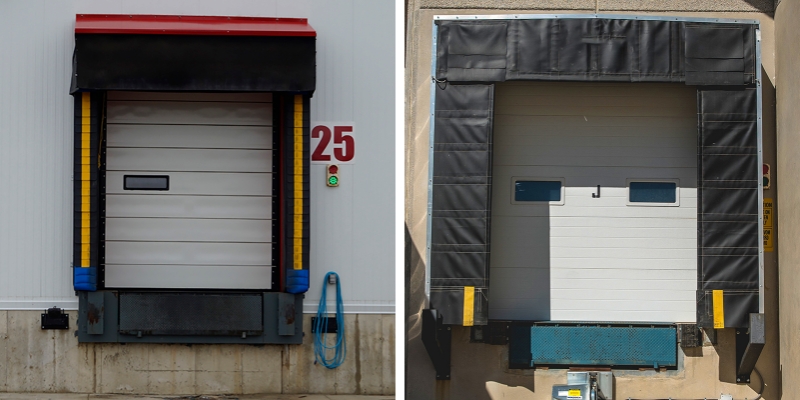

Although the terms "dock seal" and "dock shelter" are sometimes used interchangeably, their operating principles are different.
A dock seal generally uses compression pads that directly contact the trailer. This approach can provide a tighter seal when the facility handles trailers with relatively consistent dimensions.
A dock shelter, on the other hand, generally uses flexible curtains or fabric structures that extend around the rear of a trailer. This configuration can accommodate a wider variety of vehicle sizes.
Therefore, the appropriate solution depends on the facility's trailer fleet, loading frequency, dock dimensions and environmental requirements.

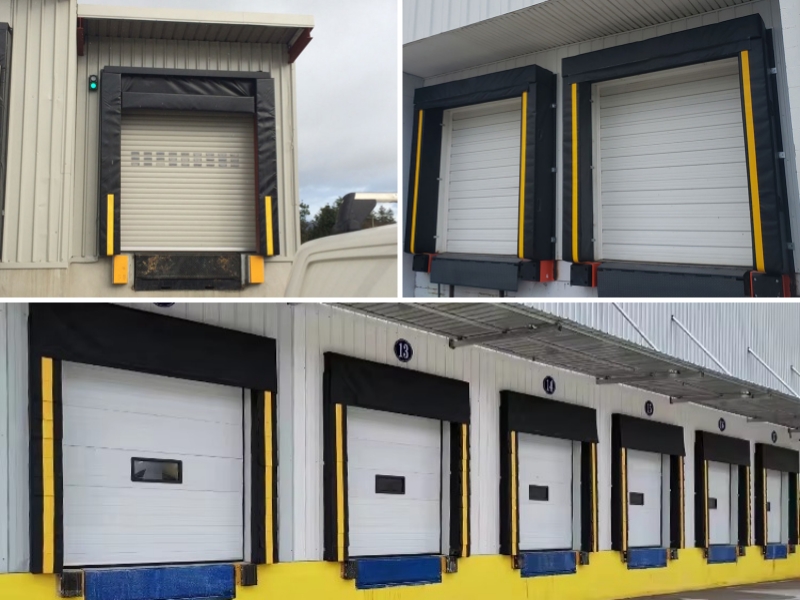

Sponge dock seals are particularly suitable for facilities where incoming trailers have relatively standardized dimensions.
Typical applications include:
Cold storage warehouses
Food and beverage distribution centers
Pharmaceutical warehouses
Logistics and distribution centers
Electronics manufacturing facilities
General manufacturing plants
Commercial warehouses
Temperature-controlled loading bays
Master Well specifically lists cold storage, food and beverage, pharmaceutical distribution, electronics cleanrooms and manufacturing facilities among the intended applications.
For B2B buyers, product construction and customization are important factors when selecting a loading dock seal.
Master Well's sponge dock seal includes several design elements intended to support long-term loading dock operation, including side pads, an adjustable head curtain, mounting boards, support structures, guide stripes and wear flaps.
The product specifications include:
Material: PVC cloth and sponge
Working temperature: -35°C to +70°C
Maximum standard size: 2800 × 3300 mm
Suitable door opening: approximately 2200–2400 mm wide and 2700–3000 mm high
Color: Black or customized
OEM: Available
Customization: Available
Actual dimensions should be selected according to the dock opening, trailer dimensions, bumper projection and site conditions rather than relying on a standard size alone.
Before purchasing a sponge dock seal, facility managers and distributors should evaluate several factors.
First, measure the loading door opening accurately. Second, determine the typical trailer dimensions entering the facility. Third, consider the frequency of loading and unloading operations.
If the facility handles trailers with significantly different heights and widths, a mechanical dock shelter or inflatable PVC dock shelters/seals system may provide greater adaptability. For facilities with a relatively standardized trailer fleet, a compression-type sponge dock seal can provide a more direct sealing solution.
As warehouses become more focused on energy management, product protection and operational efficiency, loading dock equipment has become an increasingly important part of facility design.
A sponge dock seal for loading bays and warehouses offers a relatively simple way to reduce exposure between the warehouse and docked trailer. By helping control air exchange and limiting the entry of rain, dust and pests, it can support cleaner and more consistent loading operations.
For warehouses with standardized truck dimensions, cold-chain facilities, and distribution centers looking for a durable dock sealing solution, a properly specified sponge dock seal can be an important component of the overall loading dock system.
A sponge dock seal is a compression-based loading dock sealing system installed around the sides and top of a dock opening. When a truck backs into the dock, the sponge or foam pads compress against the trailer to reduce the gap between the vehicle and the warehouse.
A dock seal normally uses compression pads that contact the trailer directly, while a dock shelter generally uses flexible curtains to surround the rear of the vehicle. Dock seals are often suitable for relatively standardized trailer sizes, while dock shelters can accommodate greater variations in vehicle dimensions.
Yes. Sponge dock seals can be used in refrigerated and temperature-controlled loading areas. Their sealing function helps reduce uncontrolled air exchange during loading and unloading. Master Well specifies a working temperature range of approximately -35°C to +70°C for its sponge dock seal.
A properly designed and installed dock seal can significantly reduce the open gaps around a docked trailer, helping limit rain, wind, dust and insects from entering the loading area.
Yes. Master Well offers customized dimensions and colors, with OEM service available. Custom sizing should be based on the actual loading door dimensions and trailer requirements.
Measure the loading door width and height, trailer dimensions and bumper projection. The most frequently used trailer sizes should also be considered. Accurate site measurements help ensure that the seal provides effective contact without excessive compression.
Common applications include cold storage, food and beverage, pharmaceutical distribution, electronics facilities, manufacturing plants and logistics warehouses where environmental control around loading bays is important.
Yes. Dock seals can be integrated with other loading dock equipment such as dock levelers, industrial doors and dock shelters. Selecting equipment as a coordinated system can help improve loading dock functionality and operational efficiency.
