Hydraulic Dock Leveler vs Mechanical Dock Leveler: Which Is Better for Modern Loading Docks?

For warehouses, distribution centers, manufacturing facilities, and logistics hubs, the loading dock is one of the most important points in the material-handling process. A properly selected dock leveler creates a safe and stable bridge between the warehouse floor and the truck bed, helping forklifts, pallet jacks, and other equipment move goods efficiently.

Among the most widely used options are hydraulic dock levelers and mechanical dock levelers. While both systems are designed to compensate for the height difference between a loading dock and a trailer, their operating methods, maintenance requirements, investment costs, and suitability for different facilities can vary significantly.

So, when comparing a hydraulic dock leveler vs mechanical dock leveler, which solution is the better choice?

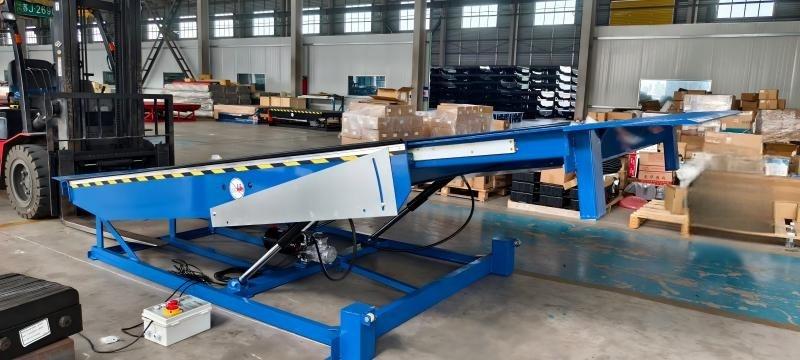

What Is a Hydraulic Dock Leveler?

A hydraulic dock leveler uses a hydraulic power unit and cylinders to raise and lower the deck. The lip is then extended toward the truck bed to create a smooth transition between the dock and trailer.

According to Master Well's product specifications, its hydraulic dock leveler uses a main oil cylinder to lift the platform and an auxiliary oil cylinder to operate the lip. The system is designed for stable operation and can accommodate differences in truck height.

Hydraulic dock levelers are particularly suitable for facilities where loading and unloading occur frequently. They can be operated through an electrical control system, reducing the amount of manual effort required from dock operators.

Typical applications include:

• Distribution centers

• Manufacturing plants

• Warehouses

• Food and supermarket facilities

• Logistics and fulfillment centers

• Industrial loading docks

For demanding logistics environments, hydraulic operation can provide a convenient way to improve loading dock workflow.

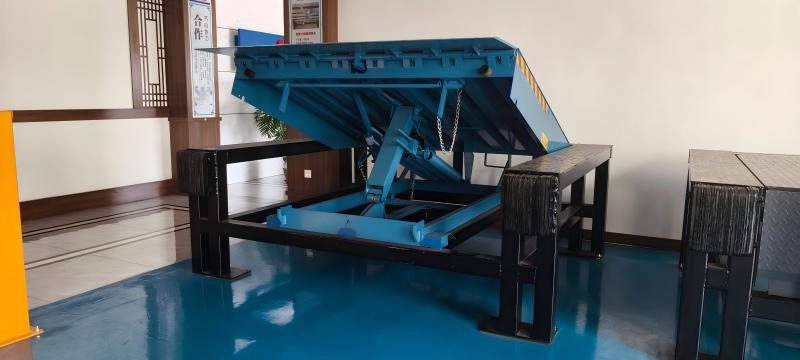

What Is a Mechanical Dock Leveler?

A mechanical dock leveler relies on mechanical components rather than a powered hydraulic system. The operator manually activates the leveler and positions the deck and lip to connect the dock with the truck.

The main advantage of a mechanical dock leveler is its relatively straightforward construction. Because it does not depend on hydraulic power or an electric control system, it can be an attractive option for facilities looking for a simpler loading dock solution.

Master Well also offers mechanical dock levelers as part of its loading equipment range, alongside hydraulic, edge-of-dock, telescopic-lip, vertical and other dock solutions.

Mechanical systems can be appropriate for warehouses with moderate loading frequency or projects where initial equipment investment is a major consideration.

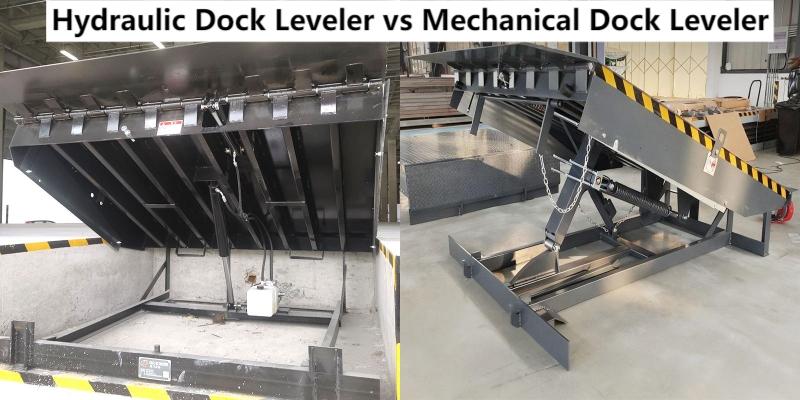

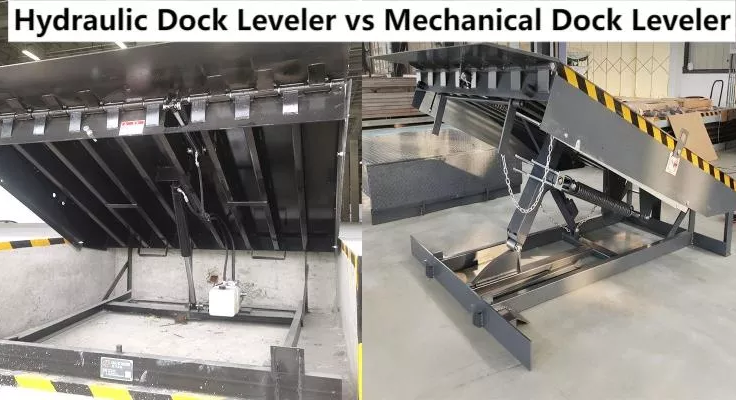

Hydraulic Dock Leveler vs Mechanical Dock Leveler: Key Differences

The biggest difference between these two systems is how the operator controls the dock leveler.

The right choice ultimately depends on dock traffic, operational requirements, budget, available maintenance resources, and the expected service environment.

Performance and Loading Efficiency

In a busy distribution center, every minute spent positioning loading equipment can affect overall productivity.

A hydraulic dock leveler provides powered movement, allowing operators to adjust the platform more conveniently. This can be particularly beneficial when multiple trucks are loaded and unloaded throughout the day.

Master Well states that its hydraulic dock leveler is designed to make loading and unloading easier and faster while improving logistics efficiency. Its standard model has a working range of approximately -300 mm to +300 mm, with a rated dynamic loading capacity of 6,000–15,000 kg, depending on configuration.

Mechanical dock levelers can also provide an effective transition between the dock and trailer, but the manual operating process may be less convenient in high-throughput environments.

Maintenance and Long-Term Considerations

Maintenance should be considered alongside purchase price when selecting loading dock equipment.

Mechanical dock levelers have a relatively straightforward operating structure, but their mechanical components experience repeated physical loads during operation. Regular inspection of moving components, hinges, springs, lip mechanisms, and other wear points is important.

Hydraulic dock levelers contain hydraulic cylinders, seals, hoses, pumps, and electrical components. These parts require appropriate inspection and maintenance. However, Master Well describes its hydraulic dock leveler as having a low maintenance rate and easy repair, with a stated service life of at least 200,000 operating cycles for its listed model.

For facility managers, the best comparison should therefore focus on total cost of ownership, rather than simply comparing the initial purchase price.

Which Dock Leveler Should You Choose?

There is no universal answer to the question of hydraulic dock leveler vs mechanical dock leveler.

A hydraulic dock leveler may be the better choice when:

• The facility handles a high volume of trucks.

• Fast and convenient operation is important.

• Multiple operators use the same loading dock.

• The warehouse requires frequent height adjustment.

• Long-term operational efficiency is a priority.

A mechanical dock leveler may be more suitable when:

• The loading frequency is moderate.

• The project has a tighter initial equipment budget.

• A simpler mechanical solution is preferred.

• Electrical or hydraulic infrastructure is limited.

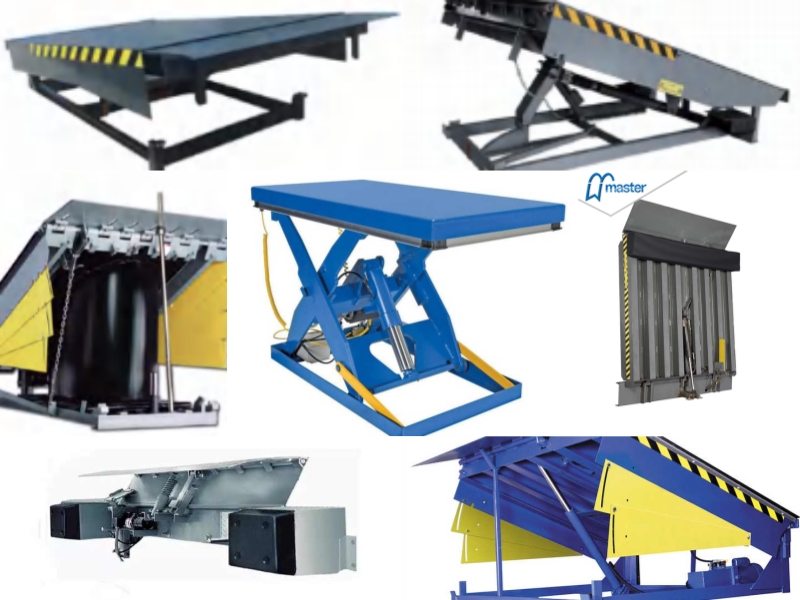

For specialized applications, buyers may also consider alternatives such as telescopic-lip dock levelers, vertical dock levelers, edge-of-dock levelers, Air Bag Dock Leveler, and scissor lift solutions. Master Well's loading equipment portfolio includes these options, allowing dock equipment to be selected according to the facility layout and operating conditions.

Why Dock Leveler Selection Matters

Choosing the right dock leveler is not only an equipment purchasing decision. It can influence forklift safety, loading speed, operator workload, equipment durability, and the overall efficiency of warehouse operations.

Before placing an order, commercial and industrial buyers should evaluate:

1. Truck height variation

2. Average daily truck volume

3. Required loading capacity

4. Available pit dimensions

5. Operating environment

6. Maintenance capabilities

7. Initial investment and lifetime operating costs

Master Well provides customized dock equipment solutions and states that its products are exported to more than 80 countries and regions. Its loading equipment range includes hydraulic and mechanical dock levelers as well as several specialized dock solutions.

Final Thoughts

The choice between a hydraulic dock leveler vs mechanical dock leveler should be based on the actual requirements of the loading dock rather than price alone.

Hydraulic models generally provide greater operating convenience and are well suited to high-frequency logistics operations. Mechanical models offer a simpler approach and can be an economical option for facilities with moderate loading requirements.

For warehouse developers, logistics companies, contractors, and industrial equipment distributors, understanding the differences between these two technologies is an important step toward building a safer and more productive loading dock.

When evaluating suppliers, buyers should also consider customization capabilities, load capacity, installation requirements, after-sales support, certifications, and long-term product reliability—not just the equipment's initial price.

FAQ

Q1: What is the difference between a hydraulic dock leveler and a mechanical dock leveler?
A hydraulic dock leveler uses a powered hydraulic system to raise the deck and operate the lip, while a mechanical dock leveler relies primarily on mechanical components and manual operation.

Q2: Is a hydraulic dock leveler better than a mechanical dock leveler?
It depends on the application. Hydraulic dock levelers are generally more convenient for high-volume loading operations, while mechanical dock levelers can be suitable for facilities with moderate traffic and simpler operating requirements.

Q3: Are hydraulic dock levelers more expensive?
Hydraulic dock levelers generally have a higher initial investment because they include hydraulic and electrical components. However, buyers should also consider operating efficiency, maintenance, and total cost of ownership.

Q4: What is a hydraulic dock leveler used for?
A hydraulic dock leveler connects the warehouse dock with a truck bed and compensates for differences in trailer height, allowing forklifts and material-handling equipment to move goods more efficiently.

Q5: What industries use dock levelers?
Dock levelers are commonly used in warehouses, logistics centers, manufacturing plants, distribution facilities, supermarkets, food facilities, and other commercial or industrial buildings.

Q6: How do I choose the right dock leveler?
Consider truck height variation, loading frequency, required capacity, pit dimensions, operating environment, maintenance requirements, and total cost of ownership before selecting a dock leveler.

Q7: Can dock levelers be customized?
Yes. Dock leveler dimensions, configurations and specifications can be selected according to project requirements. Master Well also provides customized loading dock solutions.

Q8: What other types of dock levelers are available?
Besides hydraulic and mechanical dock levelers, loading dock solutions can include edge-of-dock, telescopic-lip, vertical, and airbag dock levelers, depending on the facility's requirements.
