Wholesale Low Price Warehouse Telescopic-lip Dock Leveler

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

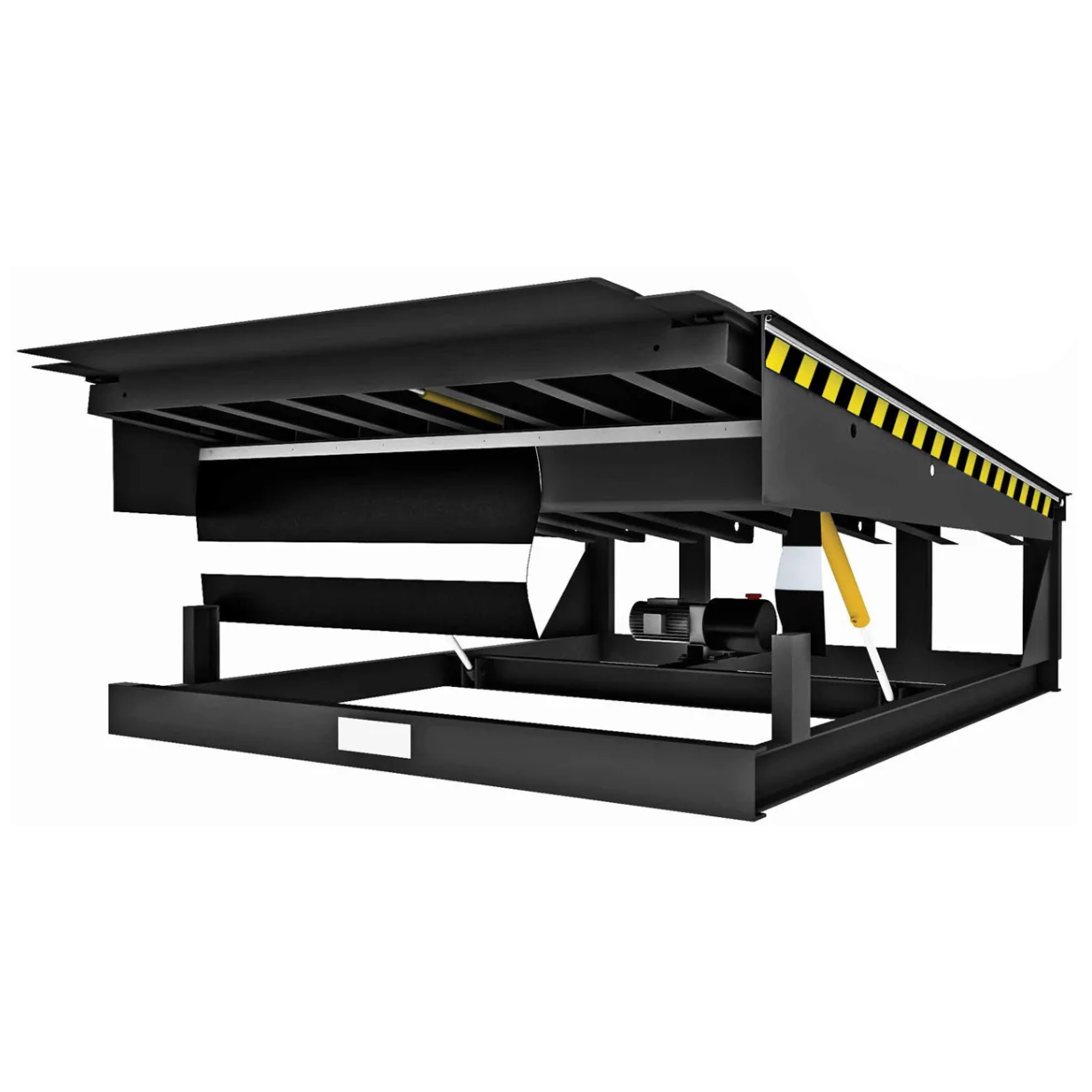

Master Well high quality Telescopic-lip Dock Leveller has a movable telescopic lip, which could positioned on the truck precisely so that it could achieve optimal load utilization and improve safety because of the large contact area between vehicle bed and dock leveller.

Summary

Larger connecting space

Simple and stable operation

Hydraulic telescopic dock leveler is the new design loading and unloading platform

Make the loading and unloading job easy and fast, improve logistic efficiency

Have more moving range

Application

Factories, workshops and warehouses which are especially in the field of food, supermarkets, assembly, logistics, warehousing and etc.

Features

Adjust the dock height when the truck height is different with dock

The lip plate is directly extended to the rear of the truck to complete the entire action with the dock leveller’s self-weight

Use shot blasting to remove rust and electrostatic spray to enhance corrosion resistance and adhesion

Low maintenance rate and easy repair

Parameters

Upper Plate

8 mm thickness, anti-skate steel plate

Swinging Lip

single 16 mm thickness, 400mm+600mm length

Support Profile

4mm U type

Sealing Element

Japan Brand NOK A505

Working Range

- 300mm to + 300mm

Adjustment Time

Rise Time ≤16S, Fall time time ≤10S

Power

380V / 220V

Electric Control Box

24 V weak current control

Dynamic Loading Capacity

6000~15000kg

Static Loading Capacity

8000~17000kg

Anticollision Block

Laminated belt stamping combined

Service Life

≥200,000 times

Operating Temperature

-30 ℃ ~ + 50 ℃

Color

Blue / Grey / Black, could be customized

Noise

< 50db (±5db)
