A loading dock is more than a doorway between a warehouse and a truck. For manufacturers, distributors, logistics companies, and commercial building contractors, the right loading dock equipment can directly affect loading efficiency, worker safety, energy control, and long-term operating costs.
A complete loading dock solution typically includes dock levelers, dock shelters, dock seals, vehicle restraints, loading dock doors, and related safety equipment. The correct combination depends on the type of facility, trailer dimensions, loading frequency, building design, and operating environment. Industry guidance also recommends considering the application, safety requirements, budget, building constraints, and future growth when designing a loading dock.
For B2B buyers sourcing equipment internationally, this guide explains the main types of loading dock equipment and how to choose the right solution.

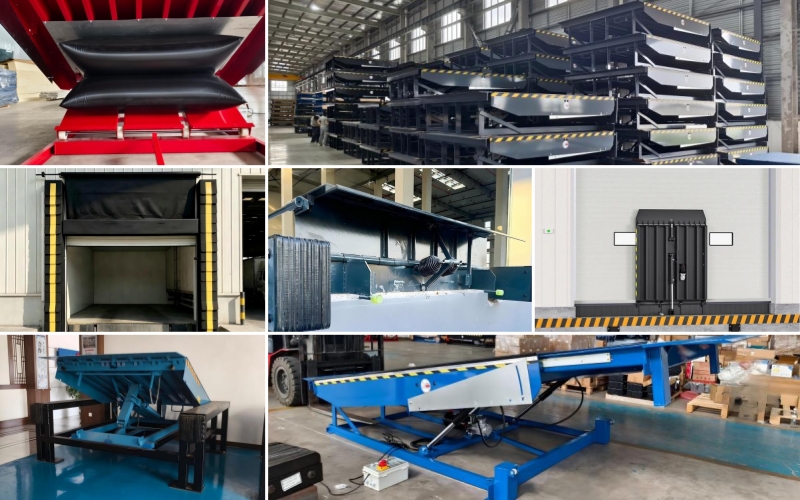

Loading dock equipment refers to mechanical, structural, and safety systems installed around a warehouse or industrial loading bay. Its primary purpose is to create a safe and efficient connection between the warehouse floor and trucks or trailers.
Common equipment includes:
Hydraulic dock levelers
Mechanical dock levelers
Edge of dock levelers
Vertical dock levelers
Airbag dock leveler
Telescopic-lip dock leveler
Dock shelters
Dock seals
Inflatable dock shelters
Vehicle restraints
Loading dock doors
Dock bumpers and safety barriers
A properly designed dock works as an integrated system rather than as a collection of individual products. For example, a dock leveler bridges the height difference between the warehouse floor and trailer bed, while a dock shelter helps seal the opening around the vehicle.
A dock leveler is one of the most important components of a loading dock. It creates a transition between the warehouse floor and the truck trailer, allowing forklifts and material-handling equipment to move safely across different trailer heights.
Common types include:

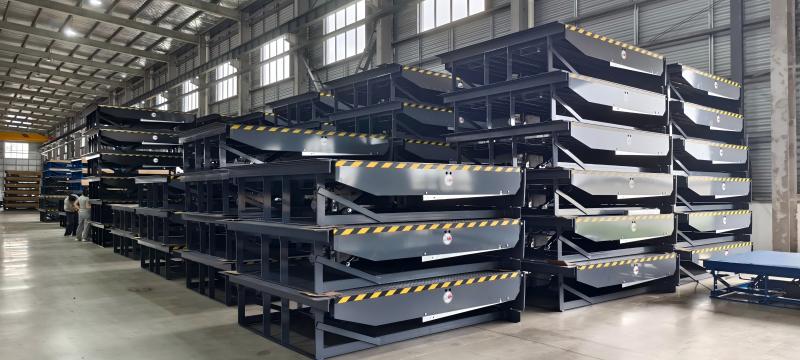

Hydraulic models use hydraulic cylinders to raise and lower the platform. They are widely used in modern warehouses because they can provide convenient powered operation and are suitable for frequent loading activity.

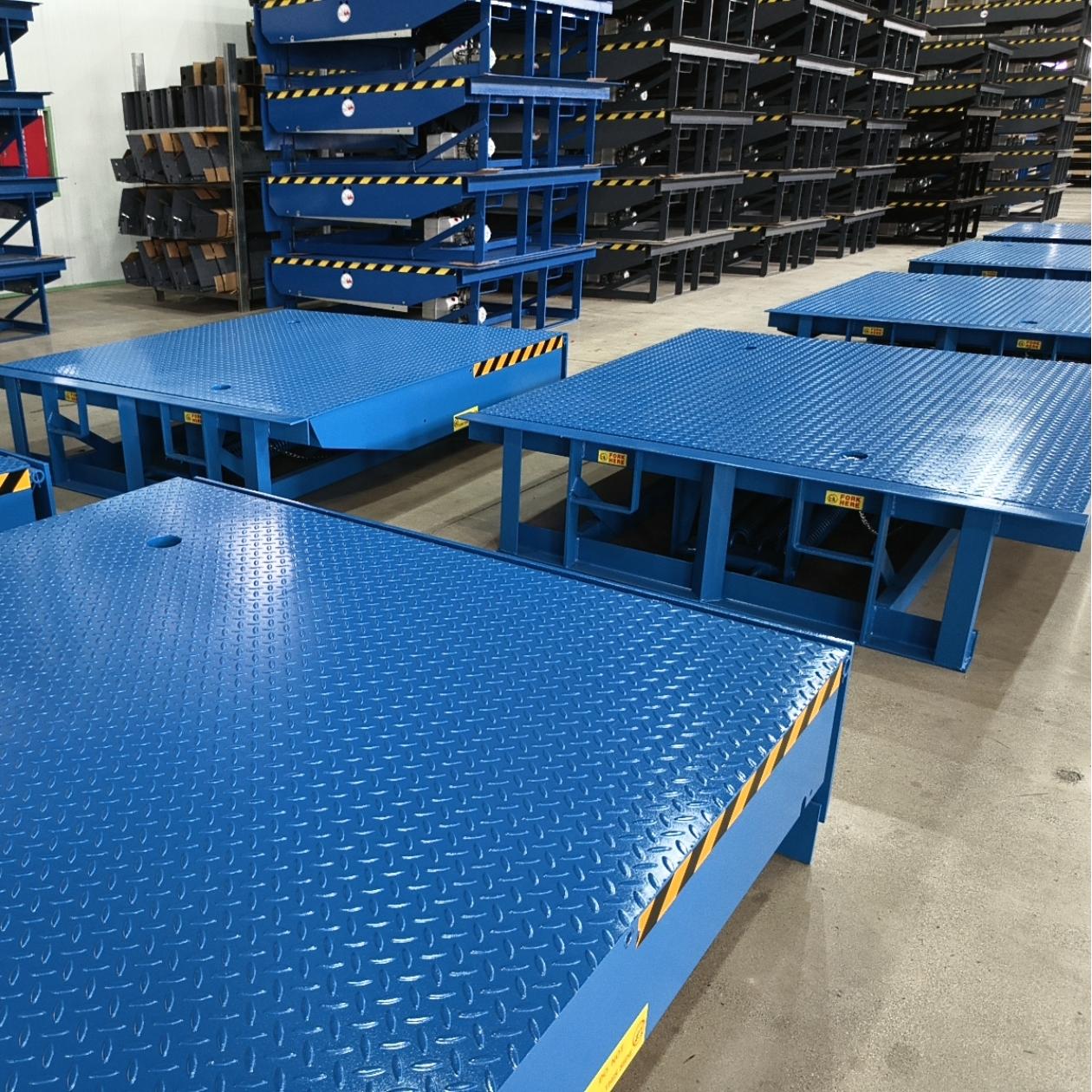

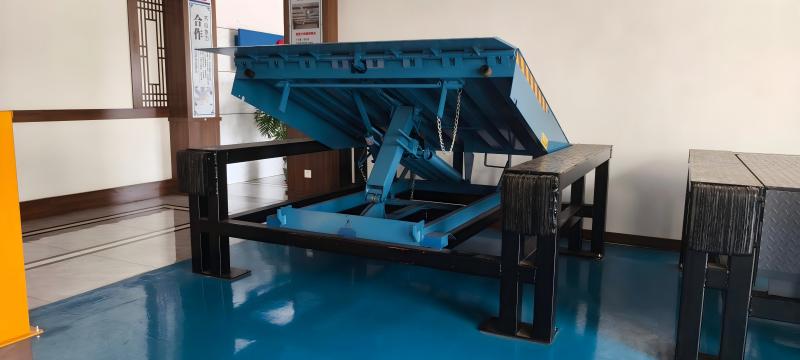

Mechanical dock levelers use mechanical springs and related components rather than hydraulic power. They can be a practical choice for facilities seeking a simpler loading dock system.

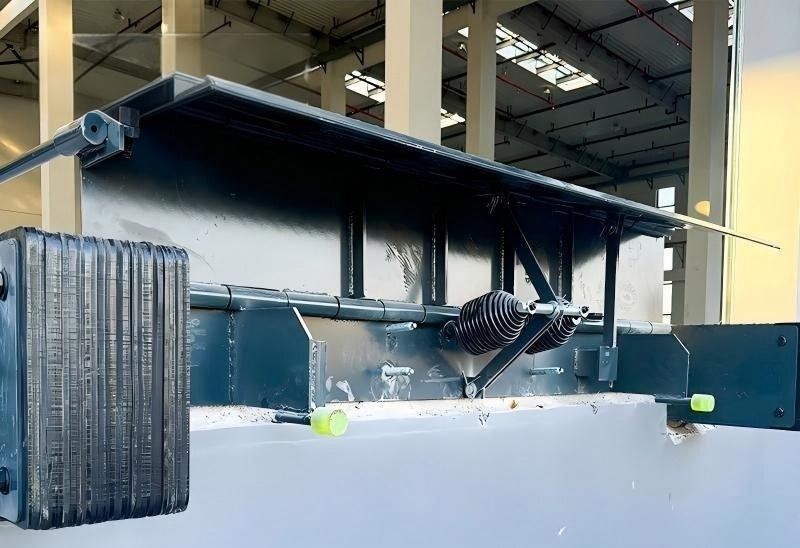

An edge of dock leveler is installed at the dock edge and is generally suitable when a full pit-style leveler is not practical. It can be useful for facilities with limited construction space or specific dock configurations.

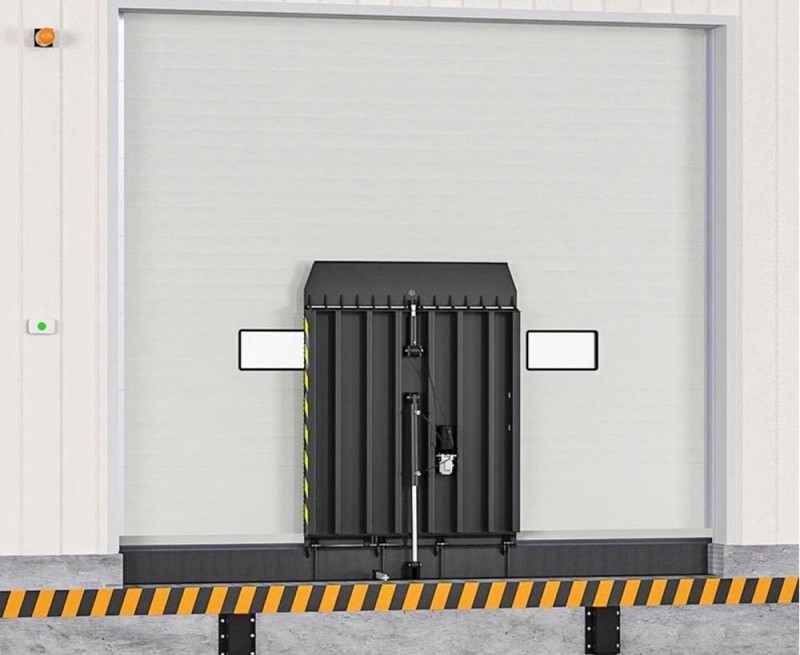

A vertical dock leveler can be stored in an upright position. This configuration can be particularly useful for facilities where sanitation, temperature control, or drive-through loading requirements are important.
Dock levelers should be selected according to trailer height range, load capacity, platform dimensions, forklift traffic, and operating conditions. Commercial manufacturers commonly offer hydraulic, mechanical, air-powered, edge-of-dock, and vertical configurations.

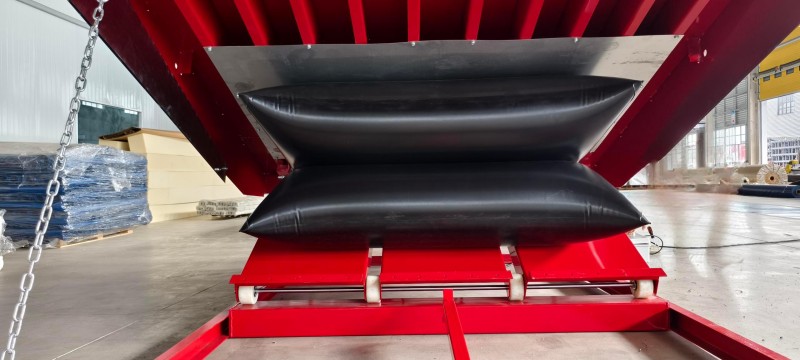

An Airbag dock leveler is a type of loading dock equipment that uses an inflatable airbag to raise a metal ramp, bridging the gap between a warehouse dock and a truck for safe loading and unloading.

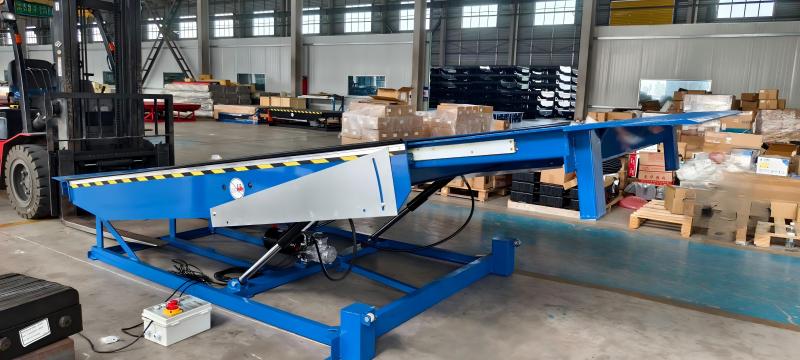

A Telescopic-lip dock leveler is a specialized loading dock ramp that uses a hydraulically powered, extendable lip to bridge the gap between the dock and the truck. Unlike a standard leveler with a fixed, hinged lip, this type can be precisely extended to reach deep into the truck's cargo area.

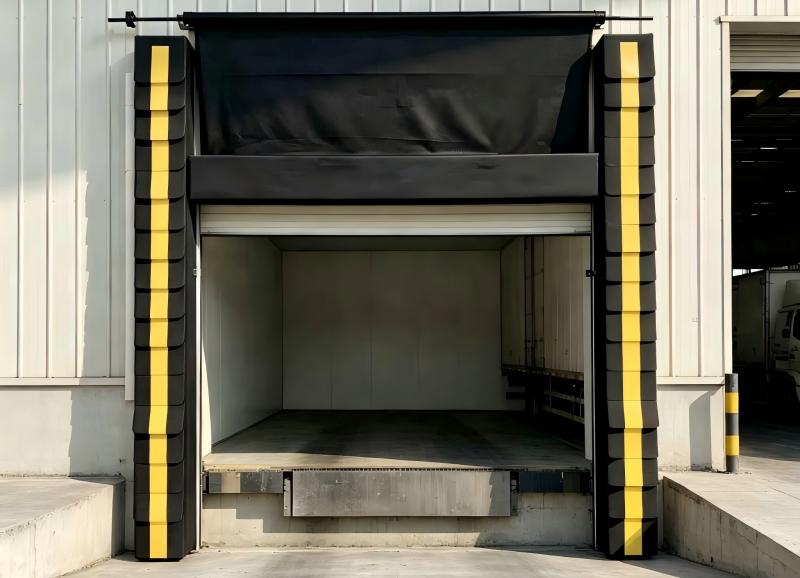

A dock shelter creates a flexible seal around the rear of a trailer when it is positioned at the loading bay.
Unlike a conventional dock seal that compresses against the trailer, a dock shelter can provide a perimeter seal while maintaining relatively unobstructed access to the trailer opening. This makes shelters useful when a facility handles different trailer sizes or configurations.
Dock shelters are commonly used in:
Distribution centers
Warehouses
Food processing plants
Cold storage facilities
Manufacturing facilities
Logistics hubs
For businesses concerned with temperature control, dust, rain, insects, and other environmental factors, the dock shelter can be an important part of the overall loading dock design.
One of the most common questions from industrial buyers is whether they need a dock seal or dock shelter.
A dock seal normally provides a compression seal around the top and sides of a trailer. It can provide strong sealing performance when the facility works with relatively consistent trailer sizes.
A dock shelter uses flexible curtains or similar components to create a perimeter seal and can accommodate a broader range of trailer configurations. It can also provide more unobstructed access to the trailer opening.
The correct choice depends on:
Trailer dimensions
Dock door size
Loading frequency
Environmental requirements
Required sealing performance
Trailer variation
Loading docks combine forklifts, trucks, trailers, elevated platforms, and pedestrians. Poorly designed or maintained equipment can therefore create significant safety risks.
OSHA guidance requires appropriate measures for dockboards, including load-capacity considerations and protection against movement. Portable dockboards must also be secured appropriately, while measures such as wheel chocks may be required to prevent vehicle movement.
Facilities should consider:
Vehicle restraints
Wheel chocks
Dock lights
Safety barriers
Dock bumpers
Warning signs
Fall protection
Emergency controls
Regular inspections
OSHA also highlights the need to address exposed loading dock edges and other fall hazards.
For B2B projects, safety equipment should therefore be considered during the initial dock design rather than added after installation.
Before purchasing loading dock equipment, buyers should evaluate the entire application.
Different trucks and trailers may have different bed heights. Your dock leveler must provide an appropriate operating range.
Consider the combined weight of the forklift, operator, and transported goods. Choosing a leveler based only on cargo weight can result in an incorrect specification.
A high-volume distribution center may require more durable equipment than a low-volume warehouse.
Cold storage, food processing, and temperature-controlled facilities may require better sealing and environmental protection.
Pit depth, dock height, door dimensions, and available installation space can determine which dock leveler or shelter configuration is practical.
A loading dock should support not only today's operations but also expected changes in vehicle types, warehouse capacity, and loading volume.
High traffic makes durable dock levelers, dock shelters, and vehicle restraints especially important.
Temperature control becomes a major consideration. Dock shelters, high speed doors, and properly sealed loading areas can help reduce unnecessary air exchange.
Hygiene and contamination control are critical. Specialized dock configurations can help reduce exposure to dust, pests, and other contaminants.
Factories may require a combination of industrial doors, dock levelers, shelters, and safety barriers depending on their production and logistics flow.
For distributors, contractors, and warehouse developers, buying from an experienced loading dock equipment manufacturer can simplify project specification and procurement.
A capable manufacturer should be able to provide:
Product specifications
Load capacity information
Installation guidance
Customized dimensions
Technical drawings
Product certifications
Replacement parts
After-sales support
Bulk and OEM options
For example, Master Well is a typical B2B manufacturer integrating industry and trade, focusing on refining its R&D based on actual user needs. A professional R&D team, coupled with professional pre-sales, sales, and after-sales service, can always create a high-quality product portfolio for you.
What equipment is needed for a loading dock?
A typical loading dock may require a dock leveler, dock shelter or seal, vehicle restraint, dock door, bumpers, safety barriers, and appropriate lighting and controls.
What is the most important loading dock equipment?
The dock leveler is one of the most important components because it provides the transition between the warehouse floor and trailer bed. However, a complete loading dock should be designed as an integrated system.
What is the difference between a hydraulic and mechanical dock leveler?
A hydraulic dock leveler uses powered hydraulic components to operate the platform, while a mechanical dock leveler relies on mechanical components. The best option depends on traffic volume, operating requirements, budget, and facility design.
Are dock shelters important for cold storage?
Yes. A properly selected dock shelter can help reduce gaps around the loading dock and support environmental and temperature control.
How do I choose the right dock leveler?
Consider trailer heights, load capacity, forklift dimensions, loading frequency, dock height, pit dimensions, and the operating environment before selecting a model.
What should I look for in a loading dock equipment supplier?
Look for proven manufacturing capability, technical documentation, customization options, export experience, certifications, warranty support, spare parts availability, and responsive after-sales service.
Can loading dock equipment be customized?
Yes. Many commercial projects require customized dimensions, load capacities, operating systems, seals, shelters, or installation configurations. Customization should be confirmed with the manufacturer during the specification stage.
